Compact High-Power Charging for Fleets, Stations, and Highway Sites

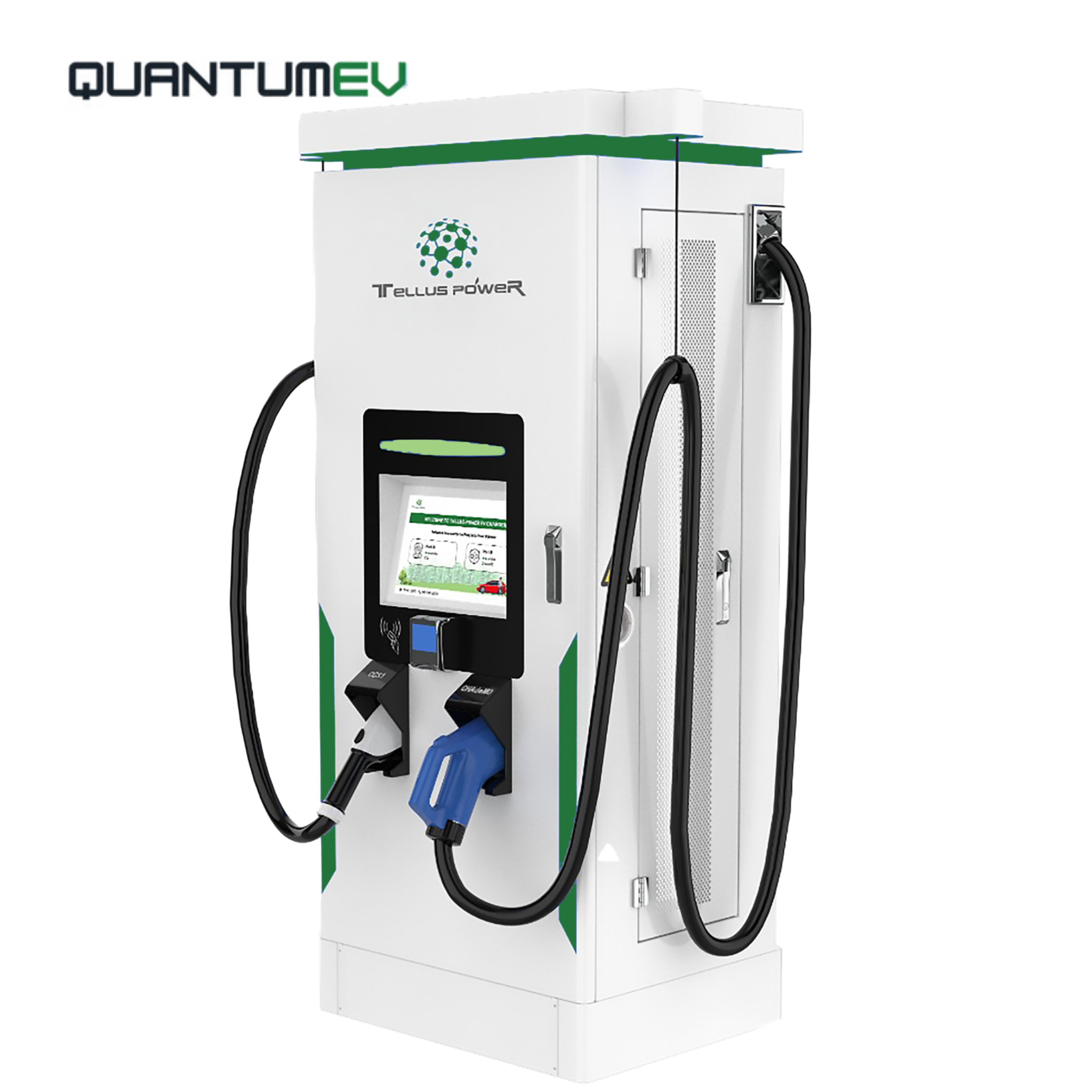

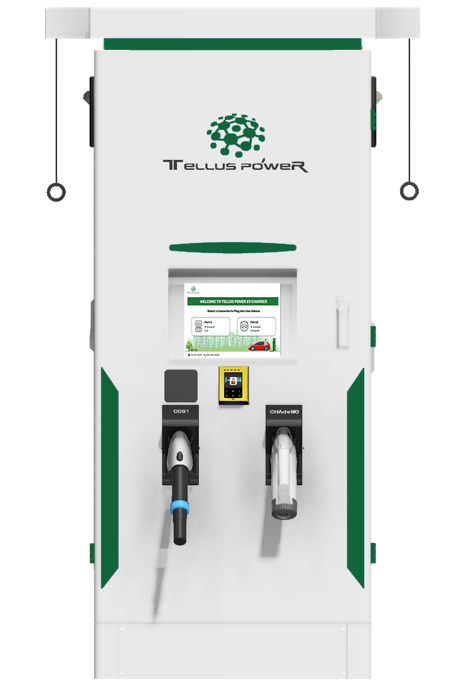

The Tellus Power Green 120 kW charger is a compact, all-in-one DC fast charging station built for heavy use. It’s ideal for industrial sites, agribusiness, gas stations, fleet depots, and highway charging.

This unit supports parallel charging, includes built-in cord management, and is OCPP 1.6J compliant for remote control and network integration.

Key Features

  • 120 kW DC output for fast EV charging
  • Compact all-in-one design
  • Simple air-cooled power modules
  • Supports parallel charging
  • Available in 750 VDC and 1000 VDC versions
  • Credit card reader for public access
  • Cord management system included
  • Easy to maintain in high-use environments
  • OCPP 1.6J connectivity for smart network control

Ideal For

  • Fleet depots and service yards
  • Heavy vehicle and industrial operations
  • Gas stations and convenience stores
  • Highway and roadside charging points
  • Public and commercial EV charging networks

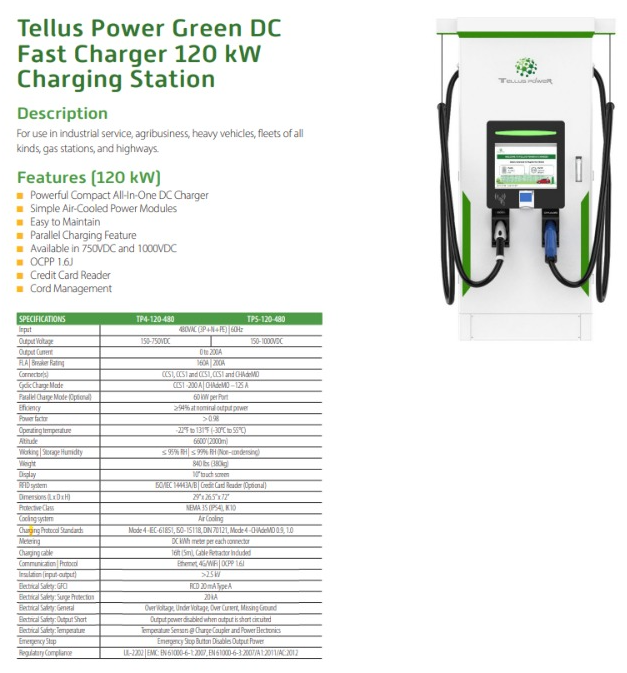

SPECIFICATIONS – TP4-120-480 / TP5-120-480
Item TP4-120-480 TP5-120-480
INPUT
Input 480VAC (3P+N+PE) | 60Hz
OUTPUT
Voltage 150–750VDC 150–1000VDC
Current 0 to 200A
FLA | Breaker Rating 160A | 200A
Connector(s) CCS1, CCS1 CCS1 and CHAdeMO
Cyclic Charge Mode CCS1 - 200A | CHAdeMO - 125A
Parallel Charge Mode (Optional) 60kW per Port
Efficiency ≥94% at nominal output power
Power Factor > 0.98
ENVIRONMENT
Operating Temperature -22°F to 131°F (−30°C to 55°C)
Altitude 6600’ (2000m)
Humidity ≤95% RH | ≤99% RH (Non-condensing)
HARDWARE
Weight 840 lbs (380kg)
Display 10″ Touch Screen
RFID System ISO/IEC 14443A/B | Credit Card Reader (Optional)
Dimensions (L × D × H) 29″ x 26.5″ x 72″
Protective Class NEMA 3S (IP54), IK10
Cooling System Air Cooling
Charging Protocol Standards Mode 4 - IEC-61851, ISO-15118, DIN 70121
Mode 4 - CHAdeMO 0.9, 1.0
Metering DC kWh meter per each connector
Charging Cable 16ft (5m), Cable Retractor Included
COMMUNICATION
Communication | Protocol Ethernet, 4G/WiFi | OCPP 1.6J
Insulation (Input–Output) > 2.5 kV
ELECTRICAL SAFETY
GFCI / RCD 20 mA Type A
Surge Protection 20 kA
General Over Voltage, Under Voltage, Over Current, Missing Ground
Output Short Output power disabled when short-circuited
Temperature Sensors Charge Coupler and Power Electronics
SAFETY & COMPLIANCE
Emergency Stop Emergency Stop Button Disables Output Power
Regulatory Compliance UL-2202
EMC: EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011/AC:2012

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

Why QuantumEV?

Easy Returns

100-day return policy with Canada-wide
shipping on all orders over $75.

Lifetime Warranty

Coverage backed by certified support teams and
trusted hardware partners.

Real Support

Our team is here to help, no bots,
no delays, just real answers

Frequently Asked Questions

What kind of vehicles can use this charger?

The Tellus 120 kW charger supports all standard DC-compatible electric vehicles, including those used in fleet, industrial, and public charging.

Can this charger handle multiple vehicles?

Yes. It supports parallel charging, allowing two vehicles to charge at the same time, depending on system load.

Does it work with EV charging networks?

Yes. The charger is OCPP 1.6J compliant, making it compatible with most EV charger management platforms.

Is it suitable for outdoor use at gas stations or highways?

Absolutely. This unit is designed for high-traffic public locations, offering fast, simple, and secure EV charging with credit card access and network support.
